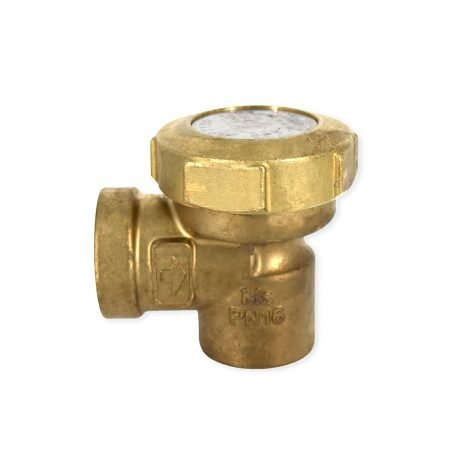

The BPT13A is a readily maintainable brass bodied, balanced pressure thermostatic steam trap. Available types BPT13A Angled connections (standard trap) Capsule fill and operation – When placing an order always state the capsule fill: Standard capsule – Is marked with ‘STD‘ for operation at approximately 12°C below steam saturation temperature. Optionally – The capsule can be supplied for sub-cooled ‘SUB‘ operation at approximately 24°C below steam saturation temperature. For critical applications the ‘ NTS‘ fill capsule should be selected which operates at approximately 4°C below steam saturation temperature. Standards This product fully complies with the requirements of the European Pressure Equipment Directive 97/23/EC. Certification This product is available with a manufacturers’ Typical Test Report. Note: All certification/inspection requirements must be stated at the time of order placement. Sizes and pipe connections “, ½ ” and ¾” screwed BSP (BS 21 parallel) or NPT. Pressure/temperature limits (ISO 6552) SKU: N.0016 Category: Steam Traps
