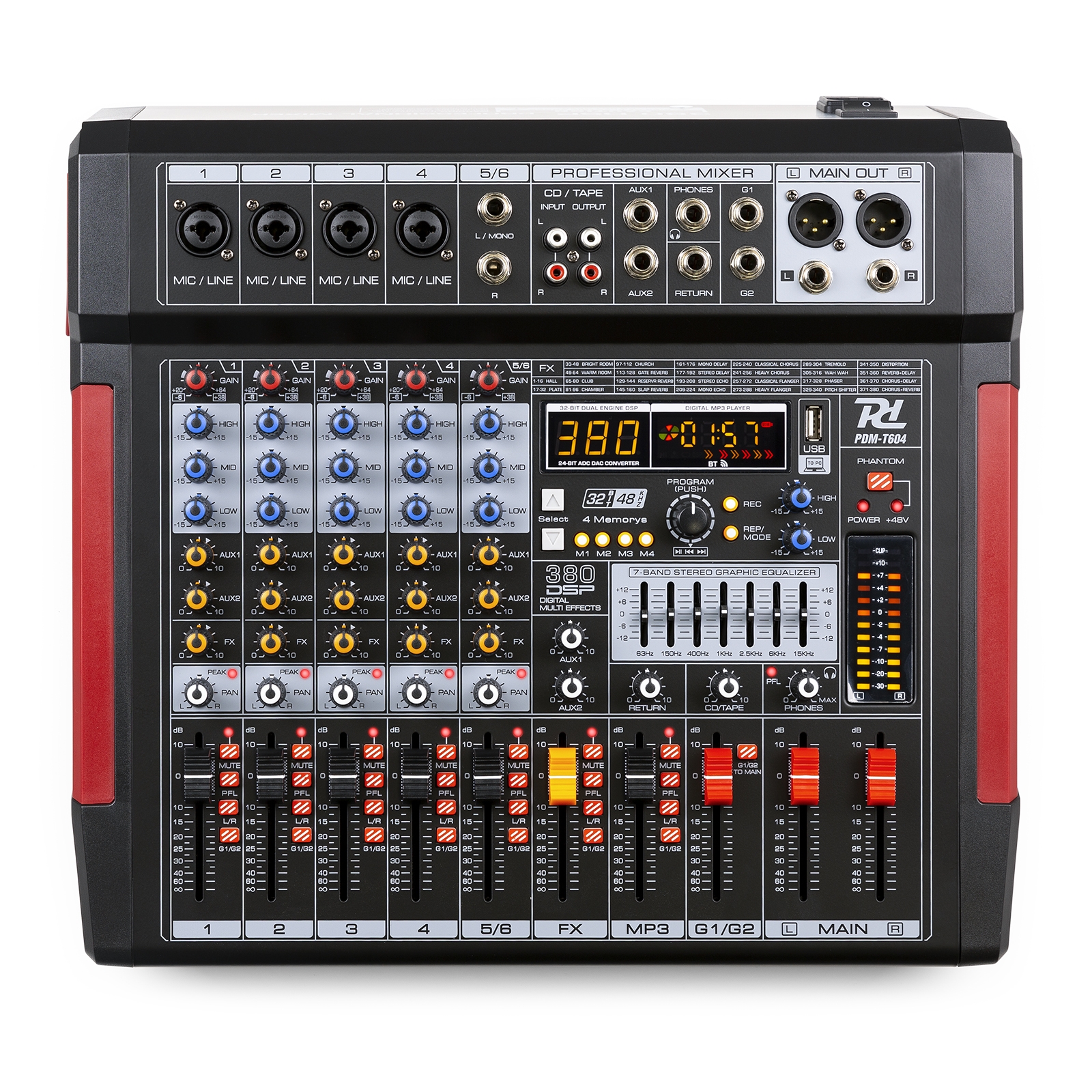

PDM-T604 Stage Mixer 6-Channel DSP/MP3

Description Specifications Files 1 The PDM-T series is a series of stage mixers equipped with a 32-bit DSP effect processor, stereo 7-band graphic equalizer, BT streaming capability and USB input/output for easy connection to the computer for music recording, etc. It’s also possible to use the one click recording function for easy MP3 recordings on a USB stick. Each channel has its own gain control with treble, mid and bass controls. The microphone preamps offer selectable 48V phantom power on all microphone channels. The PDM-T mixers are designed to provide multi-channel mixing capabilities for bands, musicians, sound engineers, conferences, studio recording and a variety of other live stage applications. Brand: Power Dynamics Product colour: Black Playback options: BT streaming, USB Input connections: 6.3mm Jack, RCA, USB, XLR (3-pin) Output connections: 6.3mm Jack, RCA, USB, XLR (3-pin) Presets: 380 DSP Resolution: 32-bit Frequency response: 20Hz - 20.000Hz THD: Equalizer: 7-Bands Equalizer: Low: 80Hz 15dB Equalizer: High: 12KHz 15dB Power supply: 100-240VAC 50/60Hz Dimensions (L x W x H): 380 x 407 x 120mm Weight (kg): 4.35 172.660_172.662_172.664_172.666 PDM-T Series Stage Mixer_manual_V1.0.pdfDownload
