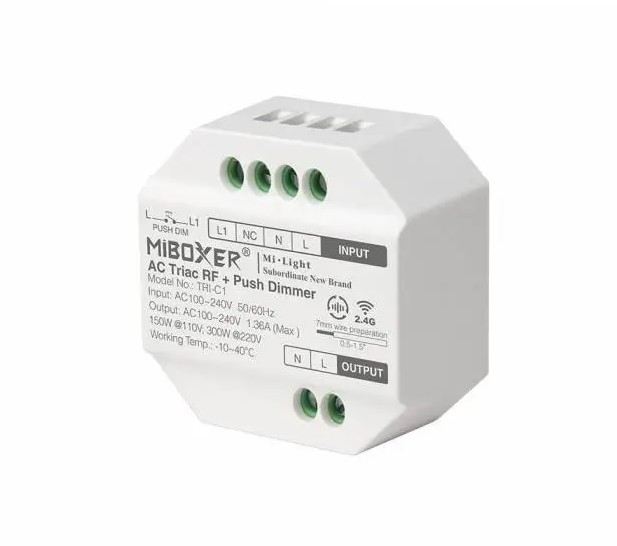

In-wall dimmer module RF switch 2.4Ghz 230V 300W MiBoxer

Description Specifications Files 1 The MiBoxer TRI-C1 is a versatile AC Triac RF Push Dimmer designed to bring modern smart control to traditional lighting systems. This compact module supports traditional incandescent lamps, halogen lamps, and triac dimmable LED lamps, offering a seamless upgrade for your home or commercial space.Equipped with advanced 2.4G wireless transmission technology, the TRI-C1 features 0~100% stepless dimming without any flickering, ensuring eye comfort and perfect ambiance. The device includes a unique auto-forwarding function, where the signal is relayed from one lamp to another, effectively making the remote control distance infinite for large-scale installations.Safety and reliability are at the core of its design, featuring a built-in temperature detection switch and overload protection. The module utilizes post-cut phase dimming technology and allows users to set a minimum brightness level to prevent bulb flickering at low power. For maximum flexibility, it supports multiple control methods: 2.4G RF remote control (up to 30m), physical PUSH switch dimming, and Tuya Smart app control (when used with a 2.4G gateway). Additionally, it is compatible with major voice assistants like Alexa, Google Assistant, and Yandex Alice, providing a truly integrated smart home experience. Product Name: AC Triac DimmerModel No.: TRI-C1Input Voltage: 100-240V~ 50/60HzOutput Current: Max 1.36AOutput Power: 150W @110V; 300W @220VControl Signal: 2.4GHz RFControl Distance: 30mIP Rate: IP20Working Temperature: -10~40°CEMC Standard (EMC): ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-3 V2.3.2Safety Standard (LVD): EN 61347-2-11: 2001 A1: 2019, EN 61347-1: 2015 A1:2021, EN 62493: 2015 A1:2022Radio Equipment (RED): ETSI EN 300 440 V2.2.1Certification: CE, EMC, LVD, REDSmart Support: Tuya smart app and third-party voice control (requires 2.4GHz gateway) TRI-C1 manual336.01KBDownload
